Vega Moduler
AC-DC > Şase Montaj > Modüler Çok Çıkışlı
450-900W Modüler AC-DC Güç Kaynağı
Genel Özellikler :
- Power Density 5.8W/cu in
- 450 watts to 900 watts
- 1-10 fixed or adjustable modular o/ps
- Output voltages - 1.8-64 V full overlap
- Output current - 1A-120A
- Cooling - System air/End fan/Reverse fan
- Signal options - Mains fail, Global inhibit, Output good, Output inhibit
- Medical and Industrial safety approvals
Key Market Segments & Applications

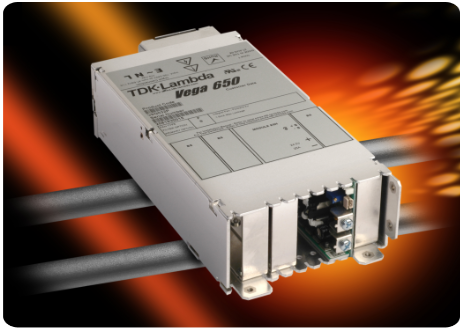

TDK-Lambda's Vega series of 450, 650 and 900W modular supplies are fully configurable and can provide between one and ten adjustable outputs. Up to 5 modules – single or dual outputs – can be fitted with output voltages from 1.8V to 64V and output currents of up to 120 amps. No minimum loads are required and inhibit, AC fail, current-share and DC-good signals are available as options. Both IEC 60950-1 and medical 60601-1 certifications are available with a variety of cooling and earth leakage current options.
